Geocomposites W Model Drain

W-shaped geocomposite drainage pad with strong seepage and drainage capacity and good shock absorption effect

W-shaped three-dimensional multifunctional base mat 丨 three layer drainage mat 丨 geocomposite drainage mat 丨 multifunctional football field base mat|Geocomposites W Model Drain

Geocomposites W Model Drain Product introduction

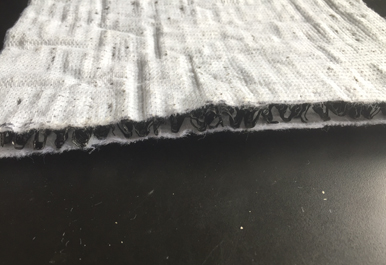

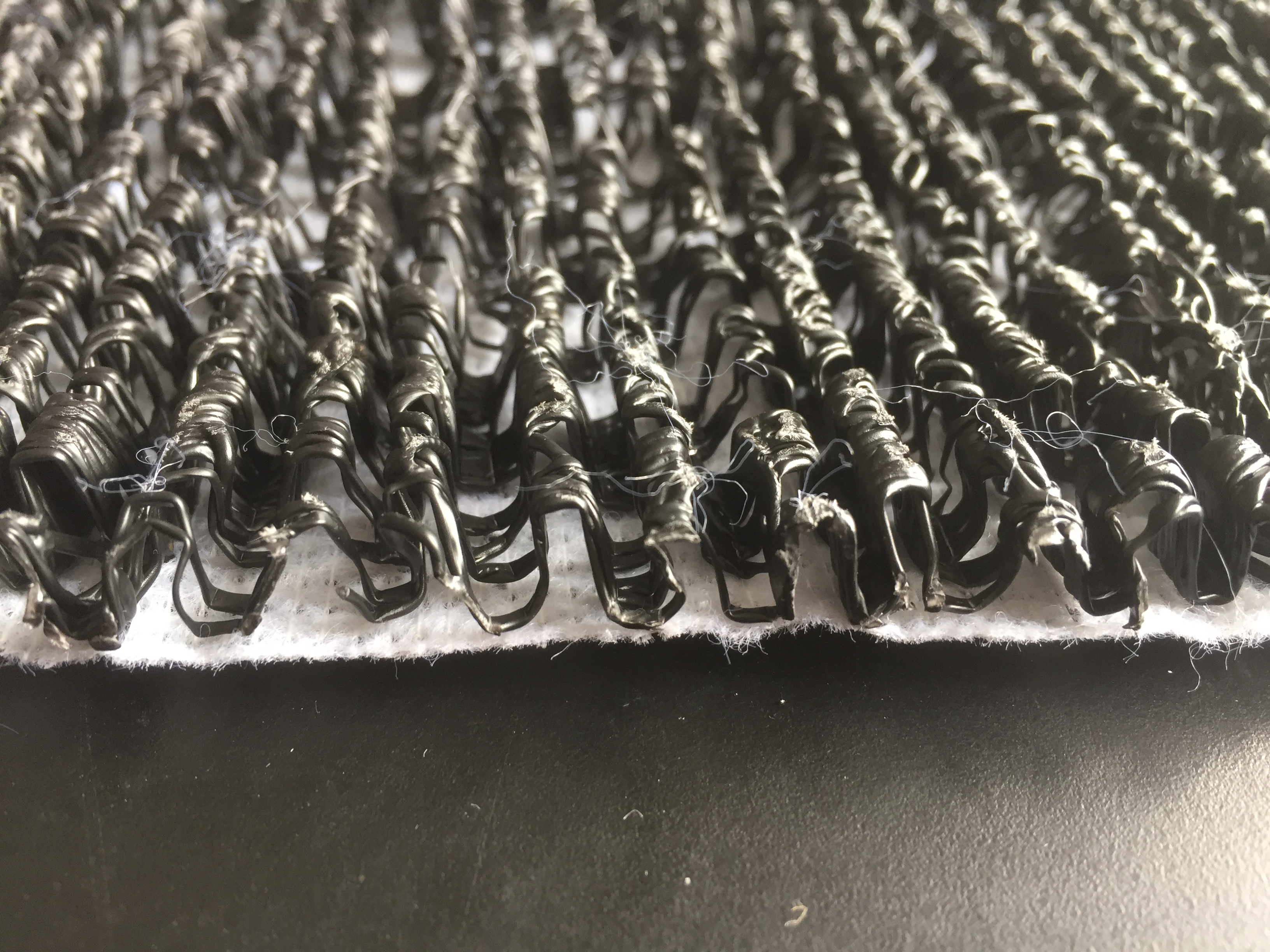

The new type of geocomposite drainage pad is a three-dimensional drainage board, which is composed of two layers of non-woven fabrics combined with a central drainage core board. The drainage core board uses polypropylene as a raw material to form a "W" -shaped longitudinal full-section continuous drainage channel through special extrusion. Because the channels in the drainage core board are continuous and straight, the levels in the different channels do not interfere with each other, so that the seepage water can pass at a fast speed, thereby achieving a good drainage effect. The upper and lower composite non-woven fabrics play a filtering role, so that no particles will enter the drainage channel to block the channel in practical application of the project, so as to ensure that the soil structure is perfect and no structural deformation or collapse occurs. For projects with special anti-seepage requirements, a layer of geomembrane can be selected to play the role of anti-seepage. Therefore, the product actually combines three functions of drainage, reverse filtration, and anti-seepage, and is a typical multifunctional material.

Geocomposites W Model Drain Product Features

The new type of geocomposite drainage pad can quickly drain excess water in wading projects, reduce pore water pressure, and improve the overall stability of the project. Compared with traditional graded crushed stone or yellow sand drainage layer,

Geocomposites W Model Drain The main advantages are:

(1) Economy.
① Economical. According to calculations, the use of geo-composite drainage mats to replace traditional drainage cushion materials can save 15% -30% of the cost, which does not include the benefits brought by the convenience of construction.
② Construction is rapid. The use of a geo-composite drainage mat is simple and fast, greatly simplifying the complicated grading process of the traditional gravel drainage mat, which can effectively reduce the construction period and save costs.
③ The drainage effect is good. According to calculations, the drainage capacity of a 5mm thick geocomposite drainage mat is equivalent to the drainage capacity of a 50cm thick gravel drainage layer under the same conditions, and it is not easy to block, which can greatly reduce the volume of the drainage layer.
(2) Convenience of construction.
① The new type of geo-composite drainage pad is light in weight and does not require mechanical assistance and can be constructed manually; without the need for senior technicians and special construction tools, construction can usually be completed with cutting appliances, nails and hammers.
② The construction method is simple and easy to use, which ensures the continuity and convenience of the construction, and it is not easy to have construction quality problems.
(3) For reverse filtration and anti-seepage.
① The geonet between two layers of geotextiles not only provides drainage channels, but also can be used as reinforced bars to improve the physical and mechanical properties of soil.
② Geotextile can play a good role in filtering, so that water and soil loss will not occur at the same time of drainage, and the soil retention effect is good.
③One of the geotextiles can be replaced with a geomembrane to prevent seepage.

④Compared with the traditional drainage mat, the main feature of the new drainage mat is that the drainage channels are continuous straight lines and do not interfere with each other, which can achieve a good drainage effect.
